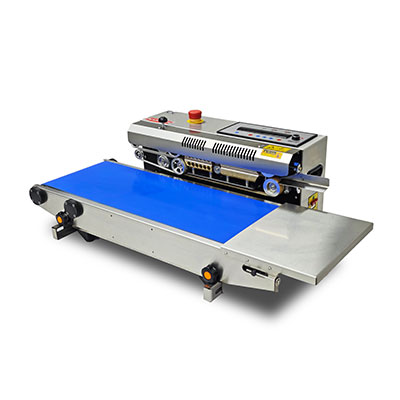

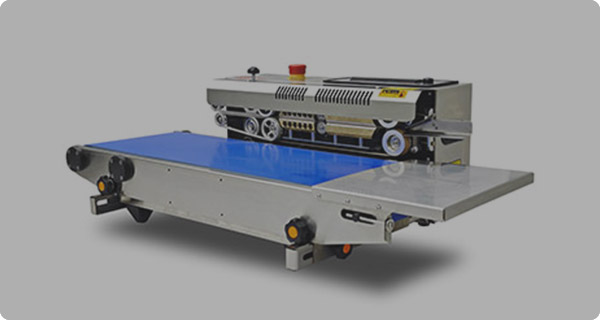

Horizontal Continuous Sealing Machine

Plastic Bag Sealer Machine SF-150

Plastic Bag Sealer Machine SF-150

Horizontal Continuous Sealing Machine
FOB Port
Terms of Payment
Western Union,T/T Paypal
feedback pdf
Product Description

Sf-150 Sealing Machine High-Efficiency & Perfect Steel Printing

Applicable To The Major Industries Oi" Aluminum Foil Bags, Plastic Bags, Composite Bag Sealing,
The Device Has A Solid Seal, High Efficiencyequipment Has A Handsome
In Appearance, Advanced Technology, Low Power Consumption, Easily Operation And Maintenance Advantages.

Plastic Bag Sealer machine

Electronic Constant Temperature Control, Stepless Speed Regulation
Can Seal Different Variety Of Material Plastic Bags

band Plastic Bag Sealing Machine

The Working Principle Of Plastic Bag Sealing Machine

When It Turns On, The Electronic Theronic Thermal Component Products Quantity Of Heat To Make The Temperature And Speed Necessary For The Sealing Material Through The Temperature Control Meter And The Speed Regulatorthe Plastic Packing Bag Is Transmitted By The Conveyer Belt With Its Sealing Part Sentinto Between The Two Running Sealing Braids And Subjected To The Extrusion Of The Two Heaters In Heating Area To Have The Plastic Film Bound After Being Heater, Then The Bag Is Cooled In Cooling Area, Its Sealing Partrolled By The Pattern Roller Or The Inker Wheelis Make Out With Stripes Or Netted Veins And Necessary Colorlabelthe Drive Part Consists Of Sealing Belt, Lead Belt And Conveyer Belt All In Synchronism Running Driven By A Motor.

band Plastic Bag Sealing Machine

Sf150 Automatic plastic Bag Sealing Machine Product Information

Sf150 Automatic plastic bag sealer Product Information

Kunba Sf-150w Automatic Film Sealing Machine Technology Parameters
Model Sf-150w Temperature Range 0-250℃
Voltage Ac200-240/50hz Printing Letters 15granule
Power&Nbsp; 500w Conveyor Loading <5kgs
Sealing Speed 0-16m/Min Shipment Dimension&Nbsp; 860*410*365mm
Sealing Width 6-10mm Gross Weight 22kg
Ffifigsfsflm 0.02-0.80mm
Sf150 Automatic Film Sealing Machine Product Details

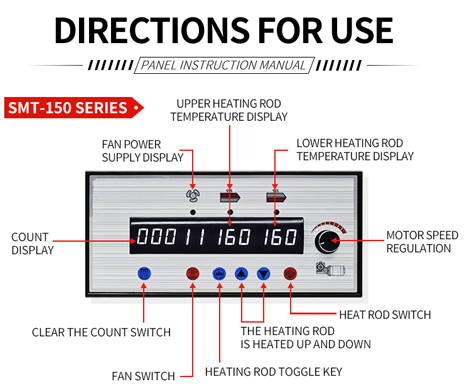

01.Simple Operation Panel

Simplepanclsimple Operation,Heating Bar Temperature, The Temperature Can Be Seen To Make Your Operation Comfortable.Built-In Motor Speed Controller And Print Position Controller,Motor Speed And Print Position Separately Controllable, Easy To Afiust And Easy To Operate.

Sf150 Automatic plastic bag sealer machine Product Details

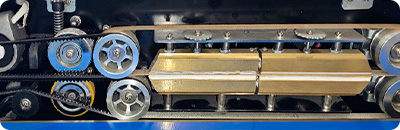

02. Sealing Parts

H59 Brass With Bold Widening Heating Block, High Strength Is Not Easy To Deformation,Corrosion Resistance, More Uniform Heating And Longer Service Life. Upper And Lower Ends Of Heating Blocks Cooling Block All Have Thermal Pads To Prevent Heat Transfer To The Body- Cooling Fan Cooling Blockheat Fastermore Stereotypes Of More Beautiful.

Plastic Bag Sealer Sf-150 Sealing Parts

03.Integration Of The Motor & Gearbox

Adopt The Design Pn'nciple Of Oman Integration Will Be High Transmission Efficiency, Low Noise, Cooling Fast, Savice Life Is 3-5 Thus Higher Than Similar Products.

04.Conveyor Table Guard
Adopt Stainless Steel Matexial Without Comer Anti-Knock Damage,More Humane, More Secure-

plastic bag sealer machine parts

05.Fine Workmanship
The Mechanical Transmission Precisely Fits The Heating Block,Sealing Effect Is Better.

06.Imported Industrial Nylon Gear
Imported From The Netherlands Industrial Nylon Gear, Smooth Transmission, No Noise, Longer Service Life &Amp; Wear. (If The Nylon Gear Is Damaged, It Can Be Free Replacement For Lifetime.)

plastic bag sealer

07.Table Can Be Adjusted
Up And Down, Front And Back Of The Conveyor Can Be Adjusted,It Can Be Adjusted According To Actual Needs To Improve Work Efficiency.

automatic plastic bag sealer operation
