Frm 980 Sealing Machine High-Efficiency & Perfect Ink Printer
Applicable To The Major Industries Oi" Aluminum Foil Bags, Plastic Bags, Composite Bag Sealing,The Device Has A Solid Seal, High Efficiencyequipment Has A Handsome
In Appearance, Advanced Technology, Low Power Consumption, Easily Operation And Maintenance Advantages.

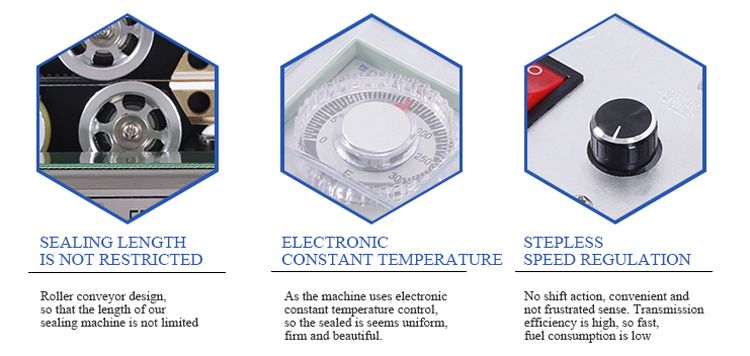

Electronic Constant Temperature Control, Stepless Speed Regulation
Can Seal Different Variety Of Material Plastic Bags
The Working Principle Of Sealing Machine
When it turns on, the electronic theronic thermal component products quantity of heat to make the temperature and speed necessary for the sealing material through the temperature control meter and the speed regulatorthe plastic packing bag is transmitted by the conveyer belt with its sealing part sentinto between the two running sealing braids and subjected to the extrusion of the two heaters in heating area to have the plastic film bound after being heater, then the bag is cooled in cooling area, its sealing partrolled by the pattern roller or the inker wheelis make out with stripes or netted veins and necessary colorlabelthe drive part consists of sealing belt, lead belt and conveyer belt all in synchronism running driven by a motor.

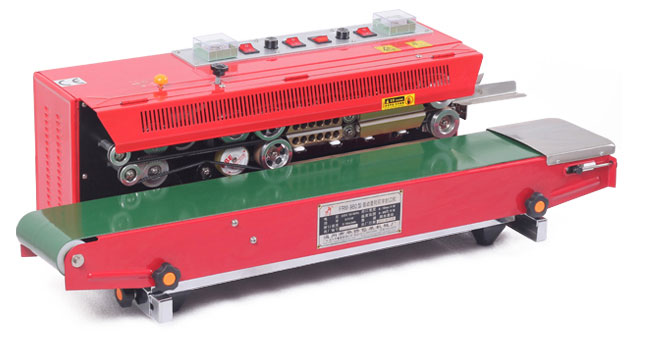

Frm-980 Automatic Continuous Ink Printer Sealing Machine
Kunba Frm-980w Continuous Ink-Printing Sealing Machine
|Model||Frm-980w||Temperature Range||2-250 ℃|
|Voltage||Ac200-240/150hz||Printing Letters||20 Granule|
|Sealing Speed||0-16m/Min||Shipment Dimension||960x420x365mm|
|Sealing Width||6-10mm||Gross Weight&Nbsp;||30kg|
Frm 980 Automatic Continuous Ink-Printer Sealing Machine
01.Simple Operation Panel
Simplepanelsimple Operation,Heating Bar Temperature, The Temperature Can Be Seen To Make Your Operation Comfortable.Built-In Motor Speed Controller And Print Position Controller,Motor Speed And Print Position Separately Controllable, Easy To Adjust And Easy To Operate.

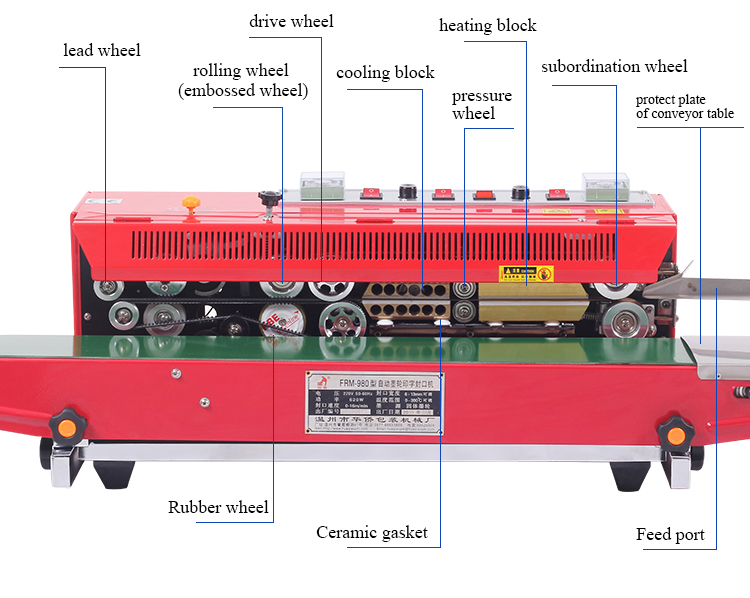

02. Sealing Parts

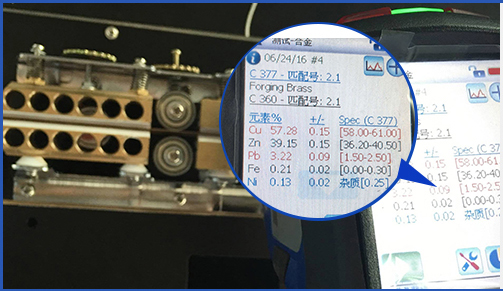

H59 Brass With Bold Widening Heating Block, High Strength Is Not Easy To Deformation,Corrosion Resistance, More Uniform Heating And Longer Service Life. Upper
And Lower Ends Of Heating Blocks Cooling Block All Have Thermal Pads To Prevent Heat Transfer To The Body- Cooling Fan Cooling Blockheat Fastermore Stereotypes Of More Beautiful.
03.Automatic Printing By Ink Wheel
Selection Of Impaited Matedals Ink Whee], Ink Wheel Will Be Automatically Run After The
Optical Eye. The Shading Of Ink-Ptint Can Be Adjustable, The Position Of Ink-Printing Words Can Be Adjustable, Simple And Easy To Opetate.

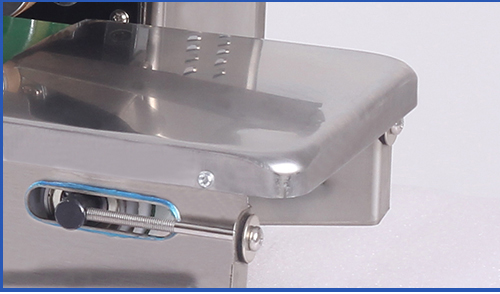

04.Conveyor Table Guard
Adopt Stainless Steel Material Without Comer Anti-Knock Damage, More Humane, More Secure-
05.Integration Of The Motor &Amp; Gearbox
Adopt The Design Principle Of German Integration Will Be High Transmission Efficiency, Low Noise, Cooling Fast, Service Life Is 3-5 Thus Higher Than Similar Products.

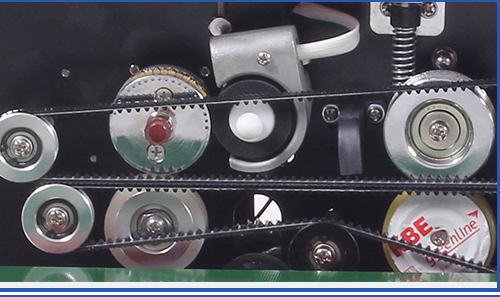

06.Imported Industrial Nylon Gear
Imported From The Netherlands Industrial Nylon Gear, Smooth Transmission, No Noise, Longer Service Life &Amp; Wear. (If The Nylon Gear Is Damaged, It Can Be Free Replacement For Lifetime.)
07.The Pressure Of Embossed Roller Ink Wheel Can Be Adju Stable
The Embossed Depth And Ink Shades Can Be Adjusted According To File Actual Situation.
08.Table Can Be Adjusted
Up And Down, Front And Back Of The Conveyor Can Be Adjusted,It Can Be Adjusted According To Actual Needs To Improve Work Efficiency.

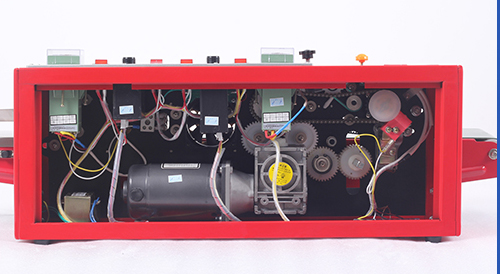

The Mechanical Transmission Precisely Fits The Heating Block,Sealing Effect Is Better.
