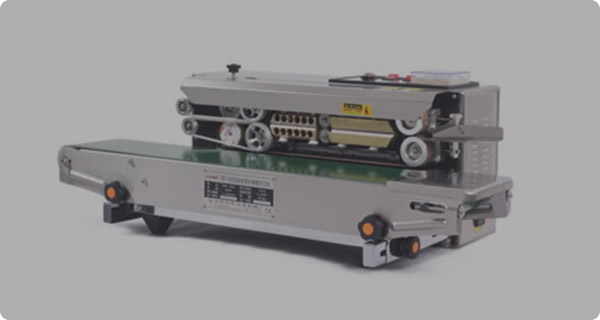

SF-150

Automatic Heat Sealing Machine

Sealing Speeds:	0-20 m/min
Sealing Width:	10mm
Sealing Thickness:	0.02-0.80mm
Temperature Range:	0-300℃

Select variant:

SF-150 Plastic Bag Sealer

Certification:

Get in touch now!

Product Applications

Product Description

Applicable to the major industries oi" aluminum foil bags, plastic bags, composite bag sealing,The device has a solid seal, high efficiencyequipment has a handsome In appearance, advanced technology, low power consumption, easily operation and maintenan ce advantages.

Features Overview

Electronic constant temperature control, stepless speed regulation
Can seal different variety of material plastic bags

Technical Parameters

SF-150W Automatic Heat Sealing Machine

SF-150 Plastic Bag Sealer

Model	SF-150W
Power supply	220±10V, 50HZ; 110V 60Hz
Total power	620W
Sealing speed	0 - 20 m/min.
Sealing width	10 mm (20mm, 25mm customizable)
Temperature range	0-300 ° C
Sealing length	no limit
Sealing thickness	0.02 - 0.8 mm
Maximum loading	≤ 8kg
Weight	N.W: 25 kg, G.W: 27 kg
Dimensions: Horizontal	L850W420H320mm

Model	SF-150W
Power supply	220±10V, 50HZ; 110V 60Hz
Total power	620W
Sealing speed	0 - 20 m/min.
Sealing width	10 mm (20mm, 25mm customizable)
Temperature range	0-300 ° C
Sealing length	no limit
Sealing thickness	0.02 - 0.8 mm
Maximum loading	≤ 8kg
Weight	N.W: 25 kg, G.W: 27 kg
Dimensions: Horizontal	L850W420H320mm

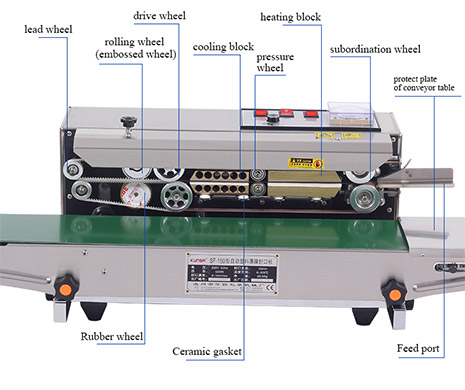

Equipment Details

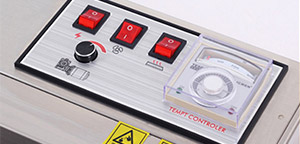

Simplepanelsimple operation, heating bar temperature, the temperature can be seen.

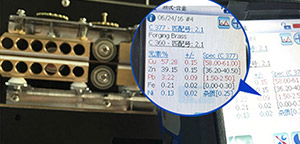

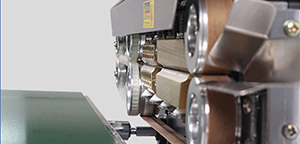

H59 brass with bold widening heating block, high strength is not easy to deformation.

Adopt the design principle of gaman integration will be high transmission efficiency, low noise, cooling fast, sen/ice life is 3-5 tim higher than similar products.

Adopt stainless steel material without comer anti-knock damage,more humane, more secure-

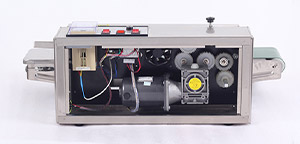

The mechanical transmission accurately fits the heating block,sealing effect is better.

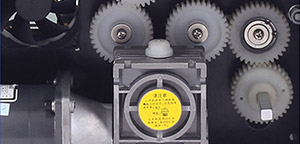

Imported from the netherlands industrial nylon gear, smooth transmission, no noise, longer service life & wear.

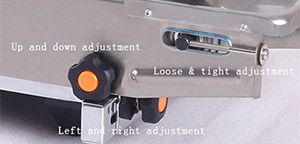

Up and down, front and back of the conveyor can be adjusted,it can be adjusted according to actual needs to improve work efficiency.
