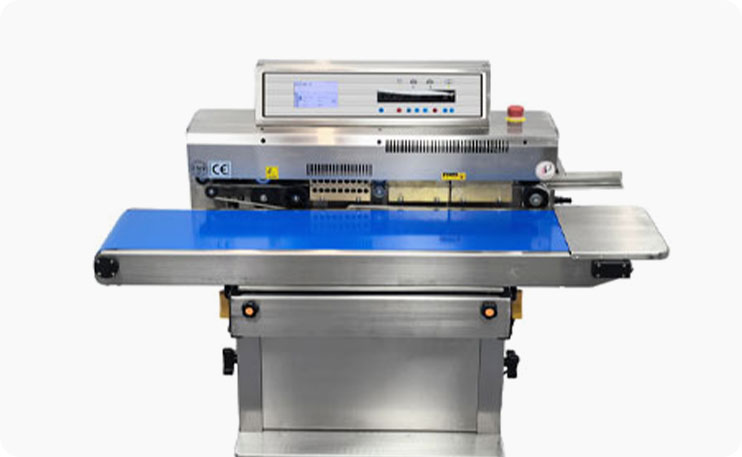

SMT-280P

Smart Inkjet Coding Sealer

Sealing Speeds	0-25m/min
Sealing Width	10mm
Temperature Range	0-300℃
Printing Category	Inkjet printing

Select variant:

SMT-280CQ SMT-280M SMT-280

Certification:

Get in touch now!

Product Applications

Product Description

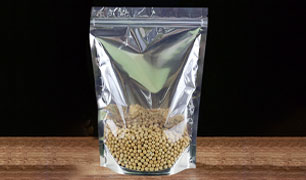

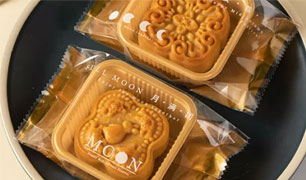

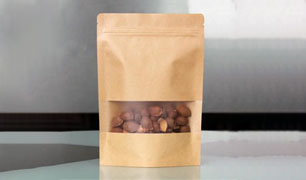

This machine is suitable for sealing various types of heat-seal packaging bags, including aluminum foil bags, plastic bags,composite bags, kraft paper, freshness bags, tea bags, and shrink film.It ofers secure sealing and high efficiency, making it widely used in industries such as food, medicine, chemical, agriculture, and lubricating oil.

Features Overview

Quad-core high-performance processor
5-inch IPS HD touchscreen
Instant printing and sealing
Various coding contents
Continuous maintenance and optimization
Intelligent printing settings

Technical Parameters

SMT-280P

SMT-280CQ

SMT-280M

SMT-280

Model	SMT-280P
Power Supply	220V/50Hz 110V/60Hz
Power Consumption	1650W
Sealing Speeds	0-25m/min
Sealing Width	10mm
Temperature Range	0-300℃
Printing Category	Inkjet printing
Conveyor Loading	Unit weight ≤15kg
Shipment Dimension	1290x545x1000mm
G.W	98kg

Model	SMT-280CQ
Power Supply	220V/50Hz 110V/60Hz
Power Consumption	1600W
Sealing Speeds	0-25m/min
Sealing Width	10mm
Temperature Range	0-300℃
Printing Category	Inkjet printing
Conveyor Loading	Unit weight ≤15kg
Shipment Dimension	1290x545x1000mm
G.W	98kg

Model	SMT-280M
Power Supply	220V/50Hz 110V/60Hz
Power Consumption	1650W
Sealing Speeds	0-25m/min
Sealing Width	10mm
Temperature Range	0-300℃
Printing Category	Steel stamp
Conveyor Loading	Unit weight ≤15kg
Shipment Dimension	1290x545x1000mm
G.W	98kg

Model	SMT-280
Power Supply	220V/50Hz 110V/60Hz
Power Consumption	1600W
Sealing Speeds	0-25m/min
Sealing Width	10mm
Temperature Range	0-300℃
Printing Category	Ink printing
Conveyor Loading	Unit weight ≤15kg
Shipment Dimension	1290x545x1000mm
G.W	98kg

Equipment Details

Self-lubricating copper material, heating and cooling block.

The equipment uses high-quality conveyor belt, which is high-quality and durable.

One-click language switching, support for any language customization.

The touchscreen runs on the free and open-source Linux operating system. It uses a quad-core high-performance processor with a clock speed of up to 1.5GHz.

Exclusive for high-end sealing machines, upgraded with high-wind fan. The texture of the bag opening pressed by the hot melt area is quickly cooled and shaped.

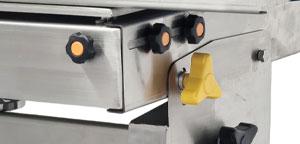

The position of the conveyor table can be adjusted forward, backward, up, and down, and can also be adjusted according to the size of the product.

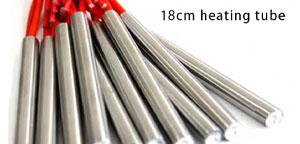

Made of 304 stainless steel, the heating tube is detachable, heats up quickly, and is not easily damaged after long-term use.

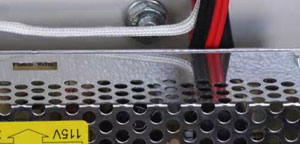

The circuit is wrapped with multiple insulation, so there will be no leakage even if a circuit is loose, protecting the safety of operators
