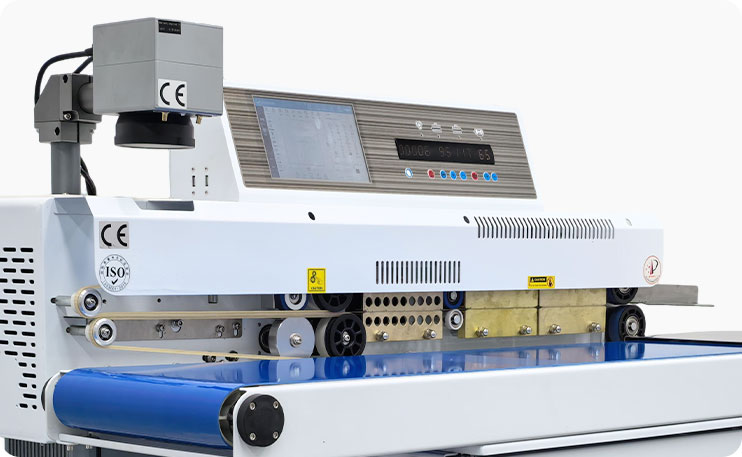

Intelligent Laser Marking and Sealing Machine

Sealing Speeds	0-25m/min
Sealing Width	10mm
Temperature Range	0-300℃
Laser generator	UV/CO₂

Select variant:

C0₂ laser marking

Certification:

Get in touch now!

Product Applications

Product Description

This machine is suitable for sealing various types of heat-seal packaging bags, including aluminum foil bags, plastic bags,composite bags, kraft paper, freshness bags, tea bags, and shrink film.It ofers secure sealing and high efficiency, making it widely used in industries such as food, medicine, chemical, agriculture, and lubricating oil.

Features Overview

Automatic Counting

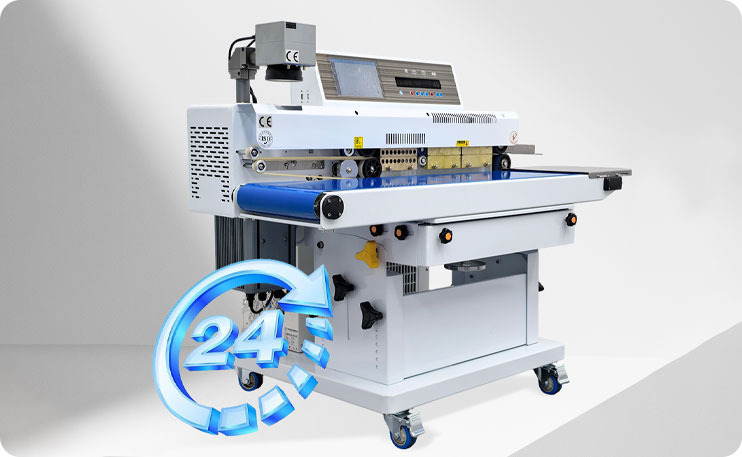

24H work is more stable
No consumables required
Intelligent coding system

Technical Parameters

Ultraviolet Laser Marking

C0₂ laser marking

Power	2700W	Power supply	220V/50Hz 110v/60Hz
Conveyor belt specifications	2447×280×2mm	Motor	24V/120W/15K
Conveyor platform height from the ground	700-900mm	Sealing speed	0-25m/min
Heating element power	380Wx4	Sealing width	10mm
Conveyor load capacity	≤15Kg	Toothed belt	J900
Sealing belt specifications	1440×18×0.3	Temperature control range	0-300℃
Total machine weight	147Kg	Machine dimensions	1290×875×1065mm
Computer display	LC5000 Touchscreen	Laser generator	UV
Cooling method	Water cooling	Operating mode	Continuous

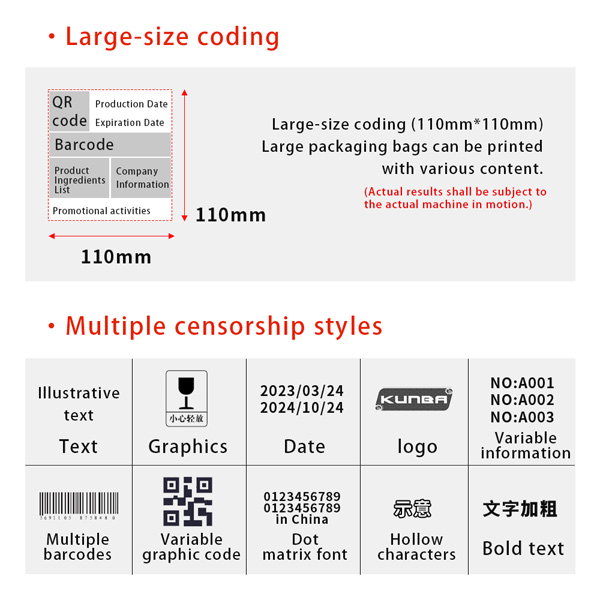

Printing area	110*110mm	Beam quality	M2<1.2
Repeatability	8 u Rad.	Marking speed	3000mm/s
Galvanometer	DS-GTB-355nm	Laser wavelength	355nm
Minimum character count	0.7mm	Operating ambient temperature range	0~45℃

Power	2200W	Power supply	220V/50Hz 110v/60Hz
Conveyor belt specifications	2447×280×2mm	Motor	24V/120W/15K
Conveyor platform height from the ground	700-900mm	Sealing speed	0-25m/min
Heating element power	380W×4	Sealing width	10mm
Conveyor load capacity	≤15Kg	Toothed belt	J900
Sealing belt specifications	1440×18×0.3	Temperature control range	0-300℃
Total machine weight	126Kg	Machine dimensions	1290×620×1026mm
Computer display	LC5000 Touchscreen	Laser generator	CO₂
Cooling method	Air-cooled	Operating mode	Continuous
Printing area	110*110mm	Beam quality	M2<1.2
Repeatability	8 u Rad.	Marking speed	3000mm/s
Galvanometer	DS-GTB-10.6um	Laser wavelength	10.51~10.65um
Minimum character count	0.7mm	Operating ambient temperature range	0~45℃

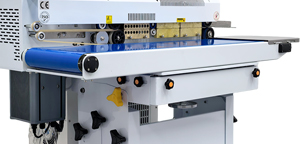

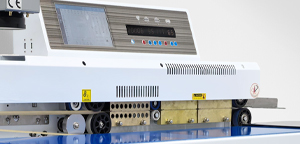

Equipment Details

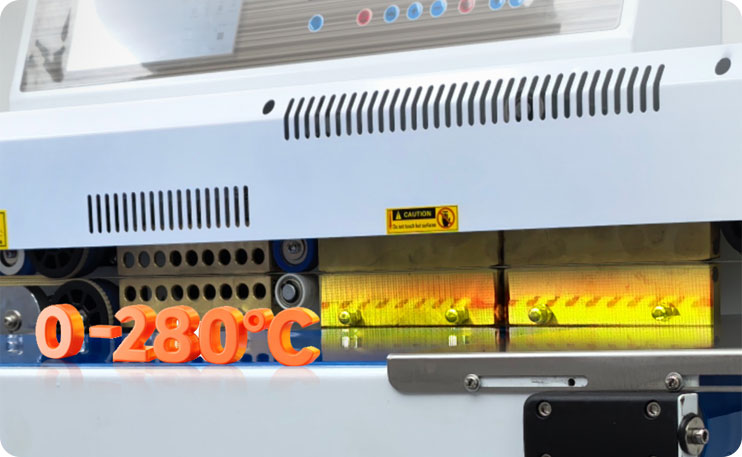

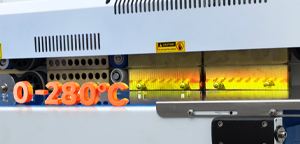

Dual sets of four extended H58 copper alloy heating blocks

Dual temperature control chips ensure a tighter and more aesthetically pleasing seal.

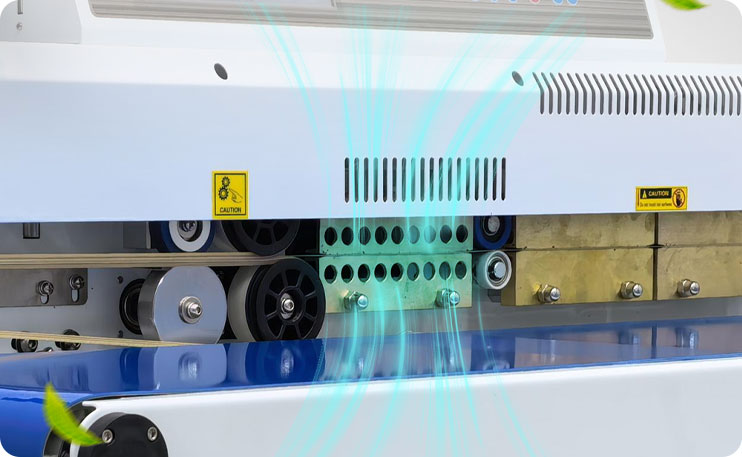

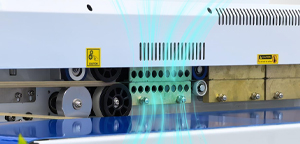

Self-lubricating pure copper heat sink can quickly dissipate heat and cool down.

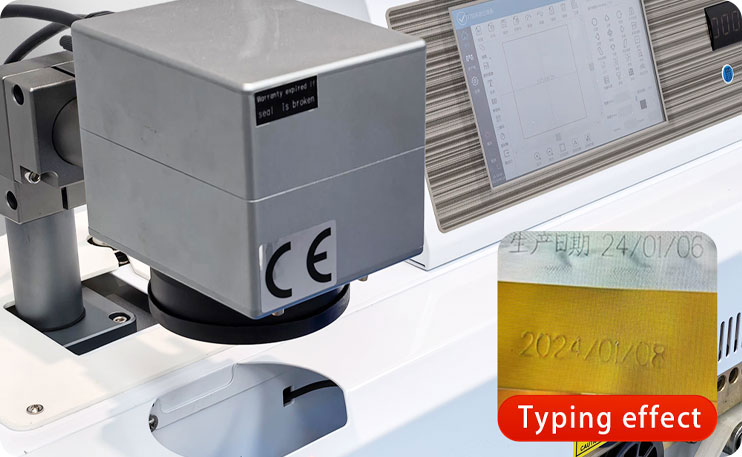

Thermal coding, requiring only electricity, zero-cost coding, high-volume packaging coding.

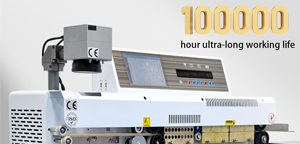

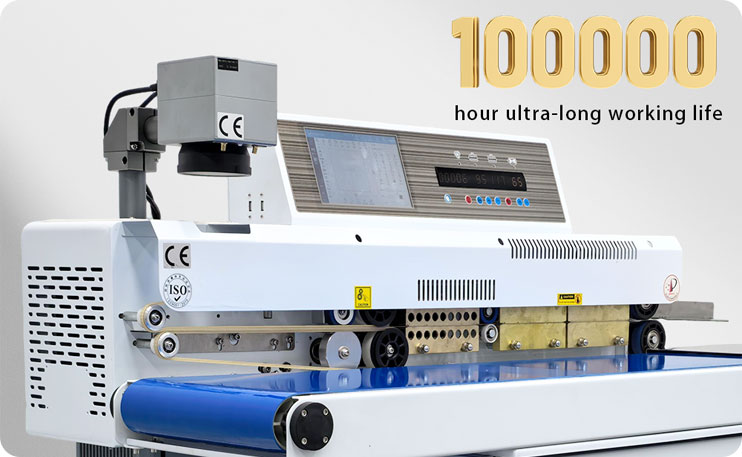

100,000-hour high-lifespan laser generator with excellent beam quality and high-quality coding.

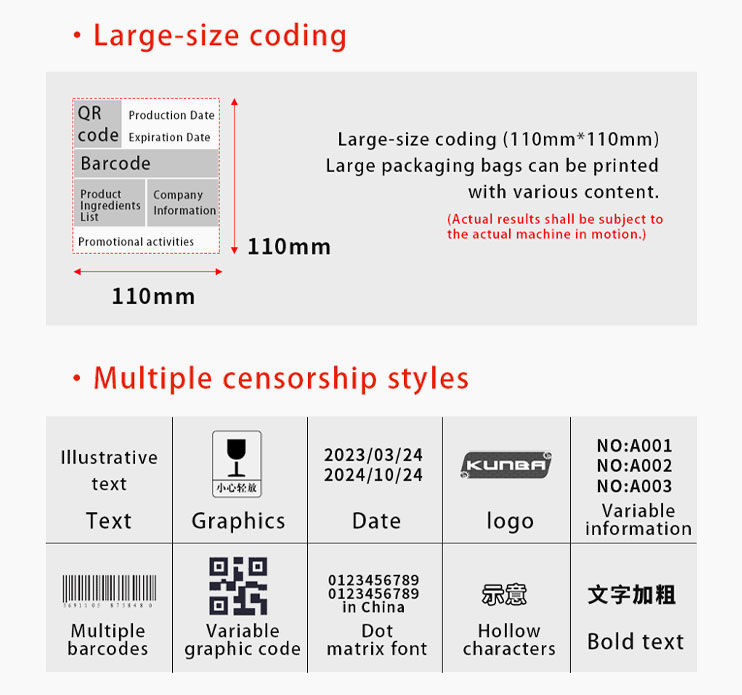

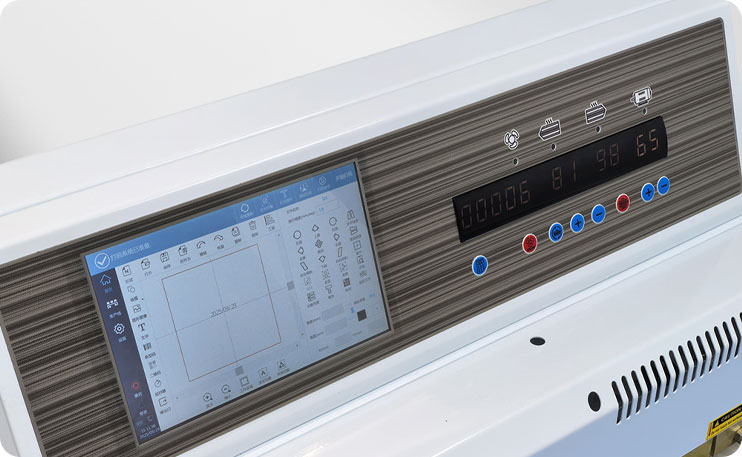

7-inch smart touchscreen, intelligent coding system, multiple content styles, flexible editing, one-click entry of coding content. High-speed sealing, automatic counting reduces costs.

Equipped with a high-quality pure copper core high-speed motor, it achieves high-speed sealing and will not burn out during long-term operation.

It can accommodate packaging bags of various sizes, both dry and wet, oil and powder, and can be quickly adjusted for sealing needs.
