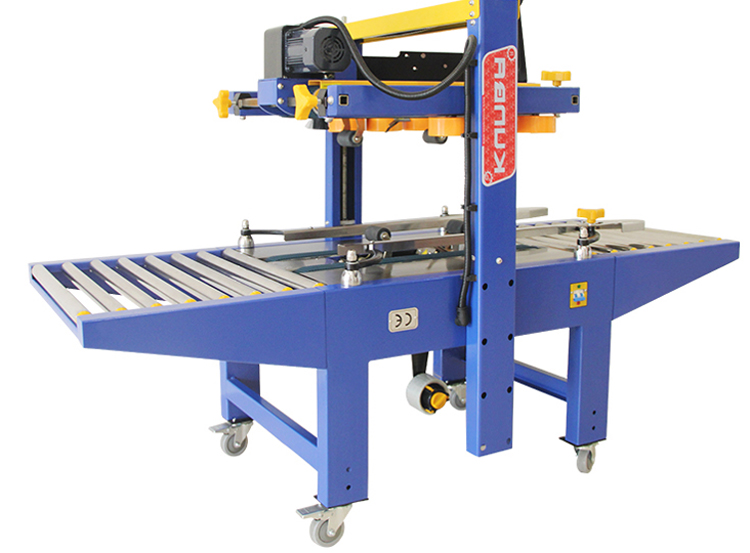

Carton Sealing Machine Case Sealer FJ-6050L

INTRODUCTION OF KUNBA FJ-6050L up and down drive carton sealer Carton sealing machine adopts the adhesive tape to seal the carton. It is fast and easy to adjust. It can finish the

Brand: KUNBA

Model: FJ-6050L

FOB Port: Ningbo/Shanghai

Terms of Payment: T/T

Update: 04/30/2017

Request Quotation >>>
Product Description

INTRODUCTION OF KUNBA FJ-6050L up and down drive carton sealer

Carton sealing machine adopts the adhesive tape to seal the carton. It is fast and easy to adjust. It can finish the action of the upper and down sealing in one time. It can also use the printing adhesive tape to improve the product image. It is an ideal choice for automatic packaging enterprises.The key part of the sealing machine is the drive motor, the larger the motor power is better. Light and durable. easy to operate.Tape carton sealing machine is mainly applied to carton packaging, can stand operational results, but also with supporting the use of pipeline, widely used in household machinery. textiles, foodstuffs, department stores,pharmaceuticals and chemicals industry. Carton sealing machine is affixed to the tape sealed cardboard box seal, fast and easy to adjust the economy, can be completed on a up and down sealing action, adopt the printing tape, but also improve product image.

carton sealing machine

KUNBA FJ-6050L PARAMETERS TABLE

FJ-6050L CARTON SEALER TECHNICAL PARAMETERS

MODEL FJ-6050L
TAPE SIZE 48-60mm
PACKING SIZE 980*820*1190MM
POWER SUPPLY AC220W/50HZ
SEALING LENGTH >200mm
NET WEIGHT / GROSS WEIGHT 118KG/153KG
MOTOR POWER 90W*2
SEALING WIDTH 180-500MM
CONVEYING SPEED <20M/min
SEALING HEIGHT 110-650mm

THE STRUCTURE OF KUNBA FJ-6050 Carton Sealing Machine

carton sealing machine structured

DETAILS OF KUNBA FJ-6050L

INTERNATIONAL STANDARD LINER,DESIGN MORE HUMANE

One-way when the mold sets, the international standard sealing interior, the unique design of tool game structure, design more humane, the use of more secure, let you use more like

carton box sealing machine

UP AND DOWN DRIVE
Up and down drive, four conveyor belt, weighing more, more stable transportation.

tape carton sealer

BILATERAL IMPORT AND EXPORT CONVEYOR

Bilateral import and export conveyor stainless steel wheel, high strength,handsome in appearance.

automatic carton sealing machine

STRUCTURE FIRM COVER BEAUTIFUL

Original design, more solid structure the cover is more beautiful appearance.

tape machine

CONVEYOR BELT
Widening the import conveyor belt,belt roller all bold thickening,weighing heavy, durable.

sealing machine converyor belt

DOUBLE MOTOR

AC motor drive, dual motor power more robust, more stable delivery.

top-bottom driven carton sealer

EASY TO ADJUST THE FOLDER
Easy to adjust the folder stick, conveying wheel smoother and smoother.

animate adhesive tape carton sealing machine

CASTERS
Self-carrying brake fixed casters,mobile or fixed operation more convenient.

carton sealing machine  casters

EXTERIOR PAINT

The appearance of the whole body by electrostatic powder coating is not easy to fall off, rust better,better stain resistance.

automatic carton sealing packing machine

KUNBA FJ-6050 COMPARE TO OTHER BRANDS

compare difference machine

FJ-6050 OPERATING PROCEDURES

Automatic Carton Sealer

step1
Place the machine on a flat surface and check for loose parts or shifting parts.

step2
Lock the brake casters, and then adjust the tripod, so that the machine is at the appropriate operating height.

step3
Place the required carton on the conveyor table and adjust the left and right conveyor adjustment levers so that the surfaces of the left and right conveyor belts are in close contact with the crate. To master the friction beltoand carton, carton deformation too general, too small cartons may slip and can not be transmitted in the past.

step4
Adjust the lifting'handwheel, so that the bottom of the tape on the head of the seat below the height ofa distance.

step5
Turn on the power, turn on the power switch, the carton into the left and right conveyor belt, this time,the transport section will automatically forward the carton and sealing.

KUNBA FJ-6050 SEALING EFFECT

automatic carton packing machine effect
