tape carton sealer FJ-6050S

carton sealing machine adopts the adhesive tape to seal the carton. It is fast and easy to adjust. It can finish the action of the upper and down sealing in one time. It can also use the printing adhesive tape to improve the product image.It is an ideal c

Brand: KUNBA

Model: FJ-6050S

FOB Port: Ningbo/Shanghai

Terms of Payment: T/T

Update: 06/30/2017

Request Quotation >>>
Product Description

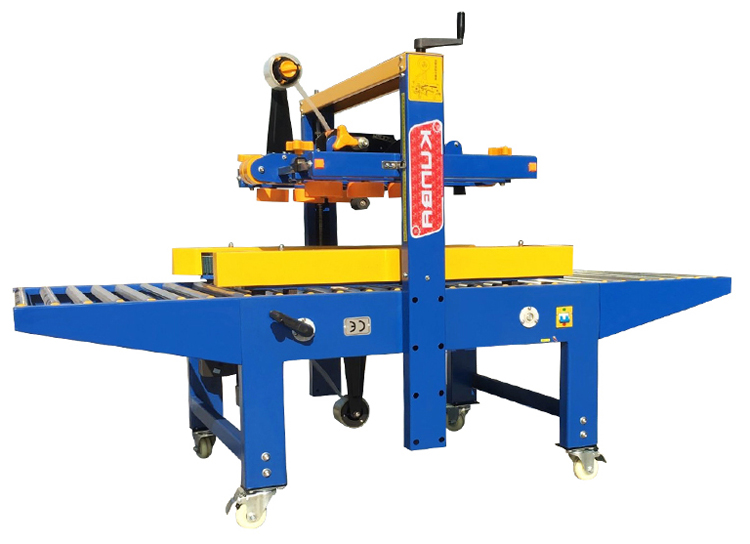

INTRODUCTION OF KUNBA FJ-6050S left & right drive carton sealing machine

carton sealing machine adopts the adhesive tape to seal the carton. It is fast and easy to adjust. It can finish the action of the upper and down sealing in one time. It can also use the printing adhesive tape to improve the product image. It is an ideal choice for automatic packaging enterprises.The key part of the sealing machine is the drive motor, the larger the motor power is better. Light and durable. easy to operate.Tape carton sealing machine is mainly applied to carton packaging, can stand operational results, but also with supporting the use of pipeline, widely used in household machinery. textiles, foodstuffs, department stores,pharmaceuticals and chemicals industry. Carton sealing machine is affixed to the tape sealed cardboard box seal, fast and easy to adjust the economy, can be completed on a up and down sealing action, adopt the printing tape, but also improve product image.

FJ-6050S tape carton sealer

KUNBA FJ-6050S PARAMETERS TABLE

FJ -6050S CARTON SEALER TECHNICAL PARAMETERS

MODEL FJ-6050S
TAPE SIZE 48-60mm
PACKING SIZE 1170*1000*1190MM
POWER SUPPLY AC220V/50HZ  110V/60HZ
SEALING LENGTH >200mm
NET WEIGHT / GROSS WEIGHT 165KG/225KG
MOTOR POWER 120W*2
SEALING WIDTH 100-500mm
CONVEYING SPEED <20M/min
SEALING HEIGHT 110-650mm

THE STRUCTURE OF KUNBA FJ-6050S

THE STRUCTURE OF KUNBA FJ-6050S carton sealing machine

DETAILS OF KUNBA FJ-6050S

INTERNATIONAL STANDARD LINER,DESIGN MORE HUMANE

UP AND DOWN DRIVE
Up and down drive, four conveyor belt, weighing more, more stable transportation.

BILATERAL IMPORT AND EXPORT CONVEYOR
Bilateral import and export conveyor stainless steel wheel, high strength,handsome in appearance.


STRUCTURE FIRM COVER BEAUTIFUL
Original design, more solid structure the cover is more beautiful appearance.

CONVEYOR BELT
Widening the import conveyor belt,belt roller all boldthickening,weighing heavy,durable.

DOUBLE MOTOR
AC motor drive, dual motor power more robust, more stable delivery.

EASY TO ADJUST THE FOLDER
Easy to adjust the folder stick, conveying wheel smoother and smoother.

CASTERS
Self-carrying brake fixed casters,mobile or fixed operation more convenient.

EXTERIOR PAINT
The appearance of the whole body by electrostatic powder coating is not easy to fall off, rust better, better stain resistance.

KUNBA FJ-6050 COMPARE TO OTHER BRANDS

FJ-6050 OPERATING PROCEDURES

step1
Place the machine on a flat surface and check for loose parts or shifting parts.
step2
Lock the brake casters, and then adjust the tripod, so that the machine is at the
appropriate operating height.
step3
Place the required carton on the conveyor table and adjust the left and right conveyor adjustment levers
so that the surfaces of the left and right conveyor belts are in close contact with the crate. To master the
friction beltoand carton, carton deformation too general, too small cartons may slip and can not be
transmitted in the past.
step4
Adjust the liftinghandwheel, so that the bottom of the tape on the head of the
seat below the height ofa distance.
step5
Turn on the power, turn on the power switch, the carton into the left and right conveyor belt, this time,
the transport section will automatically forward the carton and sealing.

KUNBA FJ-6050 SEALING EFFECT
